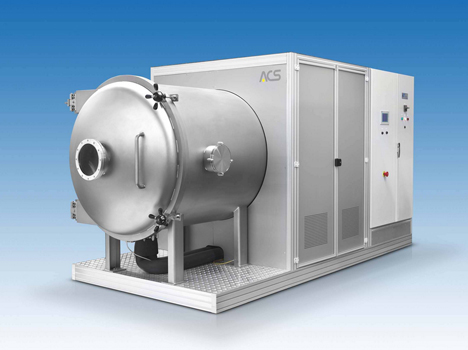

HVT1100 - 150150 GN2
- Tests : high vacumn, temperature
- External dimensions (chamber only):2000X3500X2500 mm(WxDxH)
- Internal useful dimensions : 1000x1400 mm (∅xl)
- Internal useful volume : 1100 l
- Temperature range : -150℃/+150℃
- Temperature variation rate with laod under 8x10-4 Pa :
>=1.0℃/min in the range of -150℃/-120℃ and +150℃/+120℃ with load
- Vacumn limit : 5x10-7 mbar
