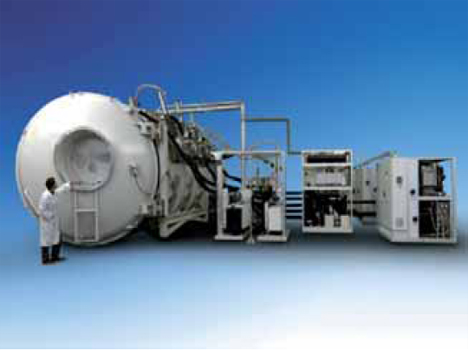

- Tests : high vacumn, temperature
- External dimensions (chamber only): 4000X10300X4000 mm(WxDxH)
- Internal useful dimensions : 3000x5000 mm (∅xl)
- Internal useful volume : 35m3
- Temperature range : -50℃/+80℃
- Temperature variation rate :
- 2℃/min from -50℃ up to +80℃ with 2000 kg internal load
- 2℃/min from +60℃ down to -50℃ with 2000 kg internal laod
- Vacumn limit : 1x10-6 mbar
- Special features : combined thermo-vacumn tests and optical measurement on satelite components
