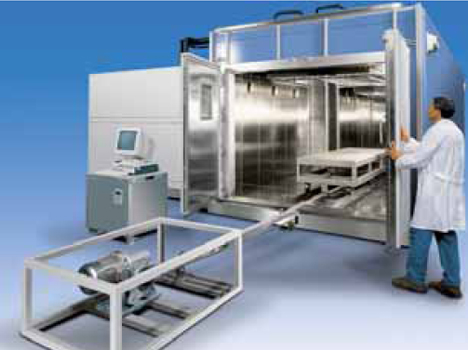

UC50-60130 CST
- Tests : the chamber consists of two testing rooms which can work independently or together perform themal shock tests and/or test profiles
- Useful dimensions :
- CHAMBER(1) : 3000x4000x2000 mm (WxDxH) .
- CHAMBER(2) : 3000x4000x2000 mm (WxDxH) .
- Temperature range : -60℃/+130℃
- Temperature rate (average value, with 300 kg of compact Aluminum load, in the testing range -54℃/+120℃) :
- ROOM(1) : 3℃/min heating, 2℃/min cooling
- ROOM(1) : 3℃/min heating, 2℃/min cooling
- LARGE ROOM(1+2) : 3℃/min heating, 2℃/min cooling
- Themal shock resetting time : 5 minutes in the range -40℃/+60℃, with 300 kg of compact aluminum load
- Humidity range : from 10% to 95% R.H. in the temperature range +20℃/+80℃
- Standard requested : MIL-STD-810G
