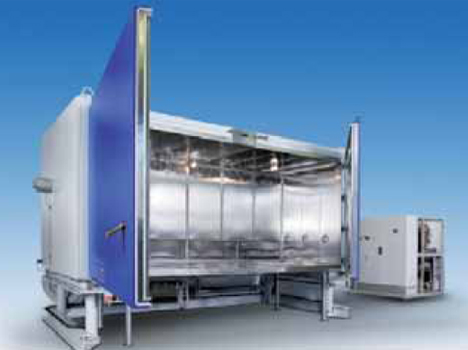

CH22000 C VT LN2
- Tests : temperature, humidity, vibrations
- External dimensions (chamber only): 5800X3000X(3540÷3940) mm (WxDxH)
- Internal useful dimensions : 5500x1850x2000 mm (WxDxH)
- Temperature range : -60℃/+90℃
- Temperature variation :
- 10℃/min from -60℃ up to +90℃
- 10℃/min from +90℃ down to -60℃
- Relative Humidity range : from 10% to 95% (dew point range +4℃/+59℃
- Special features :
- floor interfacing with external shakers
- hydralic lifting system
- Standard requested : BS 2011-LEC 68-2-32/50, MIL-STD-810G
