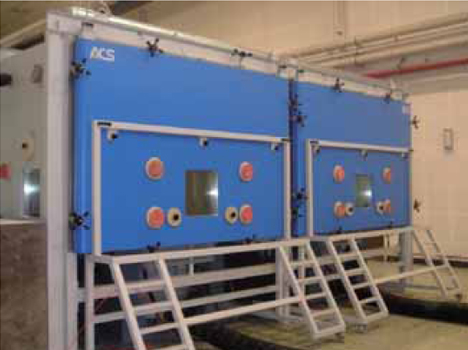

CH12000 C VT-30-ESS
- Tests : temperature, humidity, vibrations
- External dimensions (chamber only): 6400X3300X3200 mm(WxDxH)
- Internal useful dimensions : two separate rooms of 2500x1450x1600 mm (WxDxH) each
- Temperature range : -75℃/+200℃
- Temperature variation rate (with 600 kg internal load) :
- 30℃/min from -55℃ up to +70℃
- 15℃/min from +70℃ down to -55℃
- Relative Humidity range : from 5% to 98% (dew point range -5℃/+84℃
- Special features :
- floor interfacing with external shakers
- removable intermediate wall to join the two rooms in one of double volume
